INFINITI BUILT IN SINGLE SIDED CONVECTION FIREPLACES

These units are higher heat out-put additions to our insert range.
Like our smaller inserts they are designed to be built into a brick
structure/chimney.
FEATURES
1 TOUCH AIR CONTROL
Traditionally wood stoves have two air control levers - one to
control the primary air brought into the base of the fire - and one
to control air brought into the top of the fire. This is to improve
combustion efficiency, lower emissions into the atmosphere, and
keep the door/glass clean and cool. There is some thought involved
in how to adjust these controls correctly for best effect combustion.

Our 14 & 18 Kw single sided stoves utilise our 1 Touch Air Control.
This single air control is located at the bottom of the door, where it
is much cooler to the touch. It easily adjusts air flow in the correct
proportions to the top, rear and base of the stove, to maximise
efficiency and ensure clean burning - making these units much
simpler to use than many other wood stoves.
CHOICE OF GLASS
Our 14 & 18 Kw single sided stoves come in a choice of a Clear Glass
at the rear of the door or a Black Border Glass located at the front of
the door, for a more sophisticated look.
AIR INLET RESTRICTOR
Easily set to prevent over burning when installed with a long chimney
or in high wind areas.

HEATING CAPACITY
14 Kw ⊲ 560 m3

| 18 Kw ⊲ 720 m3

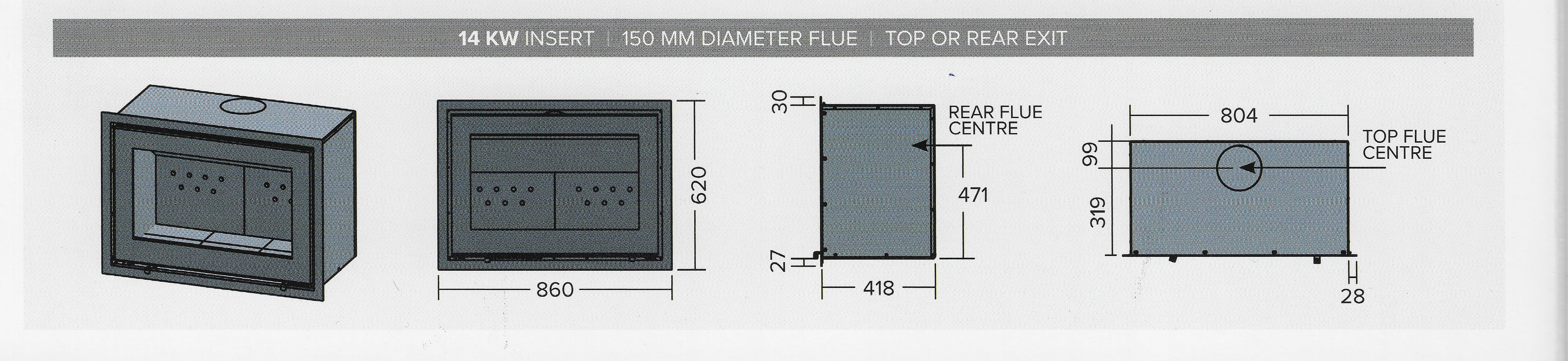

14 KW  150 MM DIAMETER FLUES WITH TOP OR REAR EXIT

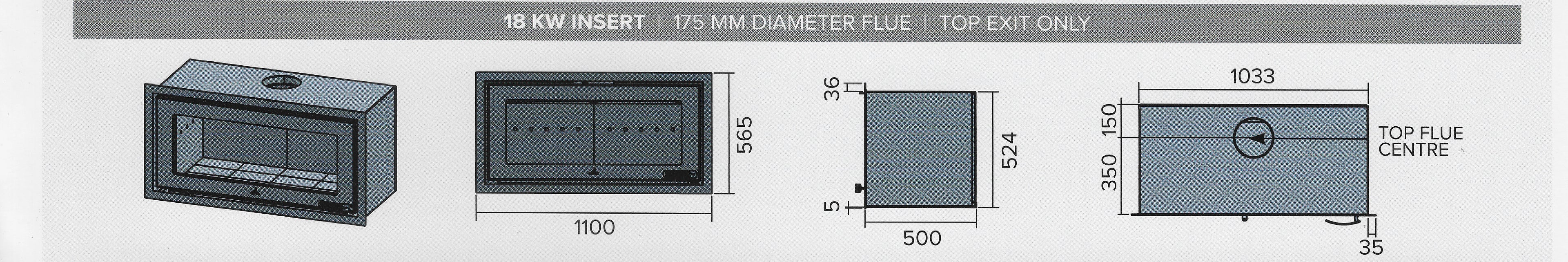

18 KW  175 MM DIAMETER FLUES WITH  TOP EXIT ONLY

5 year Warrantee. manufactured by Infiniti Fires South Africa

Open Product Brochure

Disclaimer

We are an approved reseller and installer for Infiniti Fires. Please note that to maintain your warranty, all installations must be carried out by an approved installer professional.
